Online TIJ Printers · Online TIJ Printers
MFT220E High Speed Variable Date Printing System
GS1 DataMatrix Network remote centralized management Production line alarm light control Calculate printing costs in real time Wireless keyboard and mouse control Anti-counterfeiting trace data printing Printing speed up to 406m/min Lighter and thinner more flexible
- Manufacturer: Shenzhen Mufeng Technology Limited Company
- Brand: MufengTech
- Category: Online TIJ Printers
- Price & lead time: on request
Product Details
-
GS1 DataMatrix
-
Network remote centralized management
-
Production line alarm light control
-
Calculate printing costs in real time
-
Wireless keyboard and mouse control
-
Anti-counterfeiting trace data printing
-
Printing speed up to 406m/min
-
Lighter and thinner more flexible
Technical Parameters
| Machine | Operating System | Embedded Operating System |
| Main Hardware | Cortex-A7 1.2GHz dual core processor industrial grade FPGA chip | |
| Communication Interface | Network Interface USB/RJ45 to RS-232 | |
| External Interface | Photocell, Encoder, Alarm output | |
| Support Language | Italian, English, French, Finnish, Arabic, Danish, German, Russsian, Norwegian, Portuguese, Spanish, Japanese | |
| Power Supply | 30Volts 3Amps DC output | |
| Body Material | Industrial Stainless steel | |

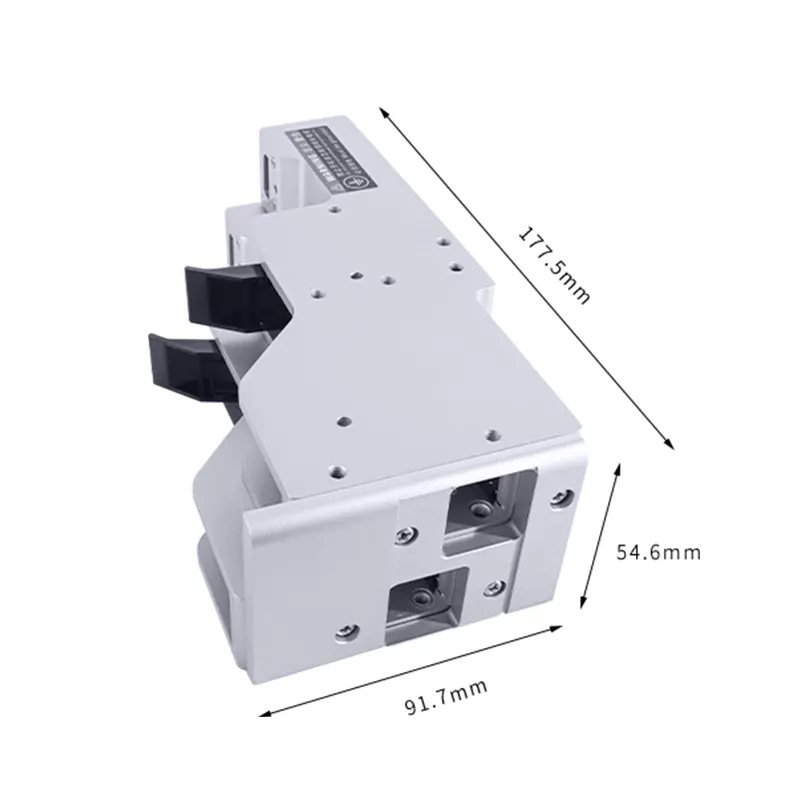

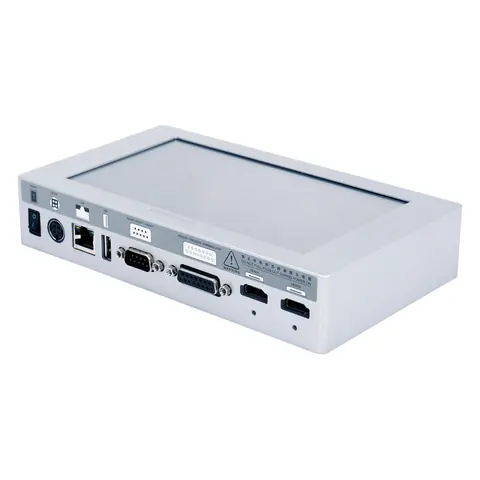

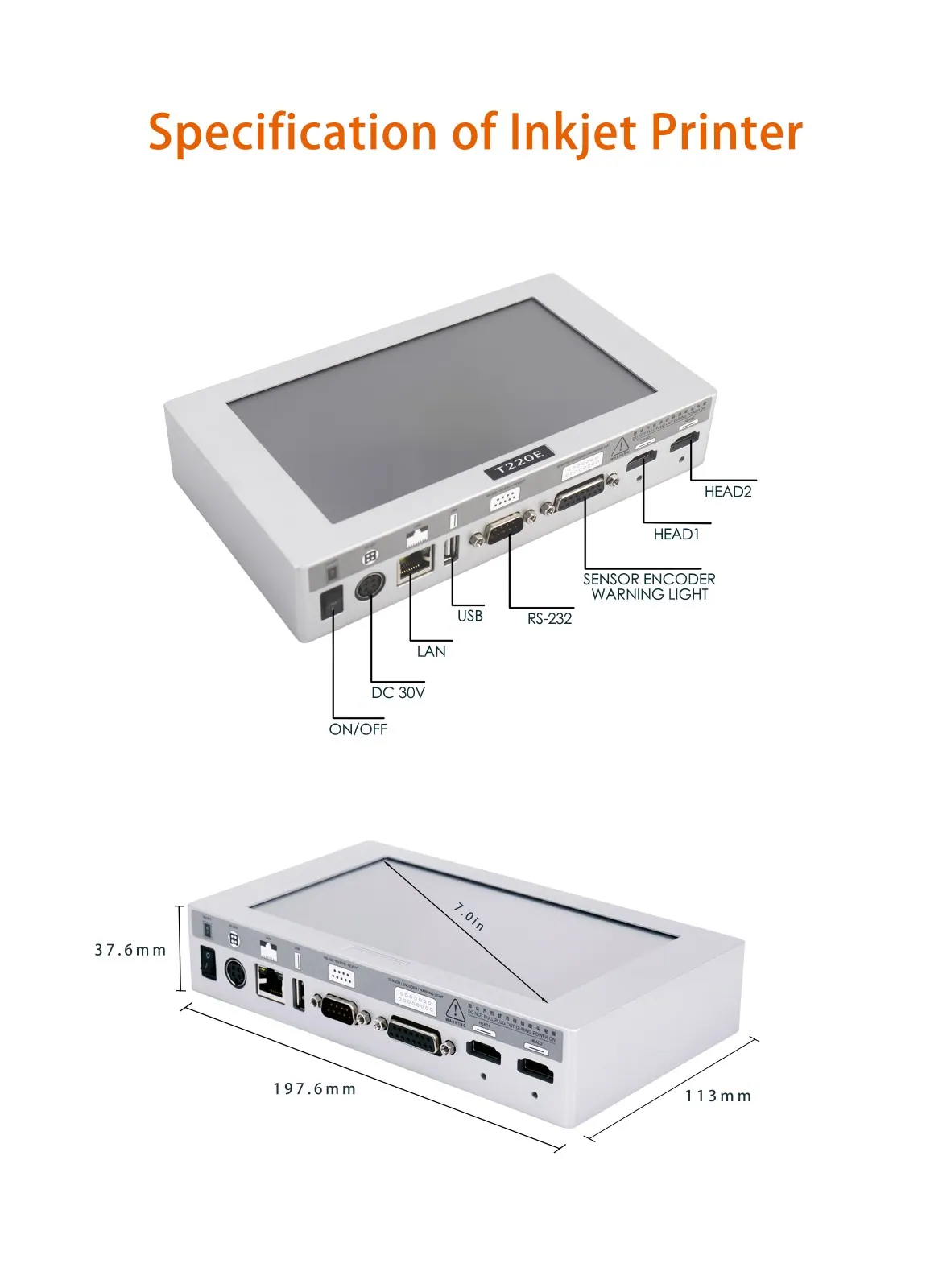

| Dimension Controller | Controller: 197.6mm*113mm*37.6mm / Head Holster 177.5mm*91.7mm*54.3mm/Screen 7 inches | |
| Working Environment | Max Temp 55C Degrees / Humidity 30 to 70% RH |
| Printing Head | Nozzle Type | Thermally Foamable Head TIJ2.5 |
| Print Accuracy | 90DPI / 120DPI / 150DPI/300DPI/600DPI | |
| Print Height | Minimum 1mm / Maximum 25.4mm | |
| Print Speed | 406m/min at 90DPI / 304m/min at 120DPI / 240m/min at 150DPI / 120m/min at 300DPI / 60m/min at 600DPI | |
| Print distance | 2mm to 5mm | |
| Print Contents | Multi language Characters, 2D Code, Barcodes, Images, Serial Number, Date,Counters, Variable Database, RS232 to receive real data to print | |
| Printable Substrates | Cardboard, Plastic, Metal, Cables, Electronic components, Auto Parts, Industrial chemical packaging, Pharmaceuticals and more | |
| Ink Type | Aqueous or Solvent based 42ml Cartridges CISS | |
| Ink Color | Black, White, Red, Yellow, Blue, Green, Stealth, UV readable | |
| Cartridge Chip | Contactless RFID tags for automatic identification and recording ink parameters and consumptions |
